HX-CG33-34/64/84 PIR High Quality Cat Eye Led Sensor Night Light 3 Different Sensor Type Cabinet Light

Short Description:


Product Detail

Product Tags

Features

※Ultra thin and simple design
※Soft spot
※TYPE-C USB charging TYPE-C
※Magnet, double-sided tape for easy installation
※Soft light, no eye injury
※Two color temperature design, there is always something you like

Product name and accessories

Packaging products and accessories

Photos

Part name

Specification

Quantity


Human body infrared induction cabinet light

300*41.2*9.2mm

600*41.2*9.2mm

800*41.2*9.2mm

1pcs


Magnet plate

40*35*4.1mm

2pcs(30/60CM)

3pcs(80CM)


3M Double sides adhesive tape

32*32*1.0mm

2pcs(30/60CM)

3pcs(80CM)

  • USB cable

TYPE-C USB

1pcs

Technology

 Product Photo  image8  image9  image10
 Model No.

HX-CG33-34(30cm)

HX-CG33-64(60cm)

HX-CG33-84(80cm)

 Power(W)

1 W

2 W

2.5 W

 LED Type

SMD3030

 LED Qty(PCS)

2 PCS

4 PCS

5 PCS

 CCT(K)

 3000K /  (4000K) /  5000K

 CRI(Ra)

>80

 Luminous flux (lm)

70±10%(Max)

140±10%(Max)

180±10%(Max)

 Battery

3.7V/1100mA

3.7V/1500mA

3.7V/1500mA

 Switch function

ON / OFF / AUTO

 Touch key function

Adjust the temperature, switch the color temperature

 Delay time

 30S

 Working time

4 Hour

2.5 Hour

2 Hour

 Charge time

 34Hour

 Shell material

AL+ABS+PC

 Operation Temperature

-20~+45

 Storage Temperature

-25℃~+55℃ (25℃ is best-fit)

 IP Rating

IP20

 Product size

300*41.2*9.2mm

600*41.2*9.2mm

800*41.2*9.2mm



Installation

1. Magnetic Random Installation
There is a strong magnet at the bottom of the product. Directly put the back of the LED lamp on the metal iron plate.


2. Magnet sheet installation

1.Tear off the release paper on one side of the double-sided adhesive tape and stick it on the magnetic iron sheet.


Tear off the core paper

2.Place the magnetic sheet with release paper on the magnet on the back of the product.


3.Tear off the release paper on the other side of the magnet sheet, and then paste it to the position to be pasted (wipe off the dust before pasting). Check again if the paste is proper and firm.

1842

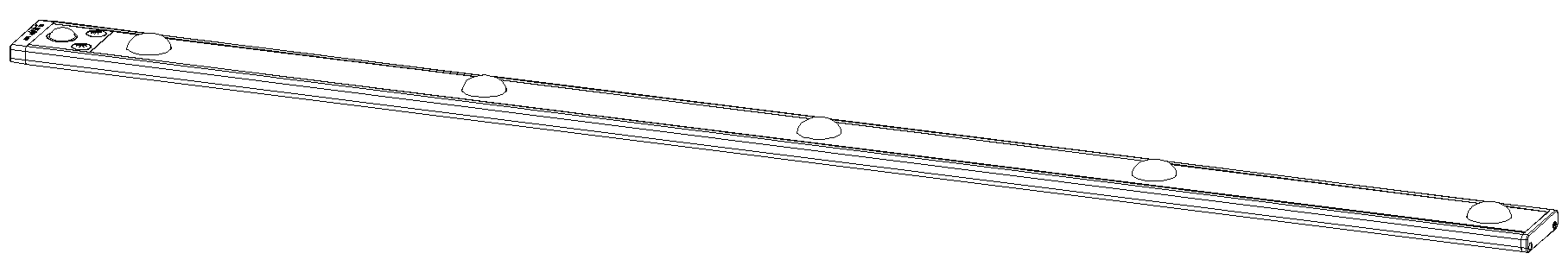

Product size chart


Product size chart

Living room, bedroom, washroom, corridor, bedside, basement, garage, bar table, wardrobe, cupboard, cupboard, bookcase, safe, camping tent, car rear trunk and other family lighting.


Cautions

1.Please keep away from inflammable and explosive materials when charging. The charging time should not exceed 12 hours. Try to avoid using while charging.
2.Do not immerse the product in water, otherwise it may be short circuited or damaged.
3.Do not put the product into the fire, otherwise it may cause combustion or explosion.
